2-Piece Hydraulic Self-Closing Door Hinge Set – Adjustable Soft Close & 90° Hold-Open

Name: 2-Piece Hydraulic Self-Closing Door Hinge Set – Adjustable Soft Close & 90° Hold-Open
Brand: 4213
SKU: NC0295260913593-高品质-承重空页【6寸黑色】
Price: 55.99 USD
Availability: InStock

(2593 Reviews)

$55.99

SAVE Sold out

Color - 2-Piece Hinge Set – Matte Black

2-Piece Hinge Set – Matte Black 2-Piece Hinge Set – Space Silver

Product variants

Free Shipping $49.99+

Buy 1 You save $0

$55.99

🔥Most popular🔥

Buy 2 Get 10% OFF You save $11.20

$100.78 $111.98

🌟Customer Favorite👍

Buy 3 Get 15%OFF You save $25.20

$142.77 $167.97

💥Best Value💥

Buy 4 Get 20% OFF You save $44.79

$179.17 $223.96

add_shopping_cart

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

2-Piece Hydraulic Self-Closing Door Hinge Set – Adjustable Soft Close & 90° Hold-Open

$55.99

SAVE Sold out

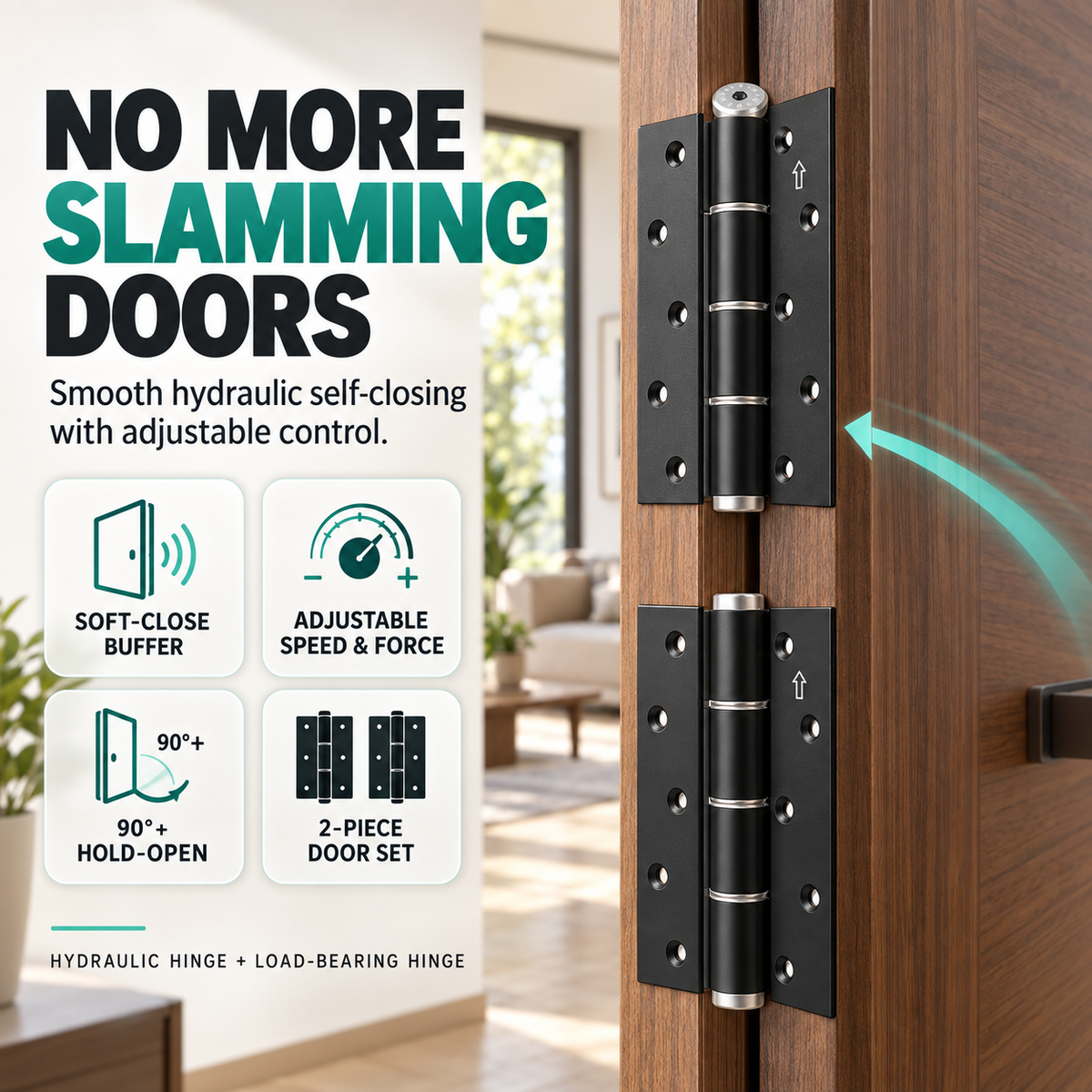

No More Slamming Doors

Upgrade your wooden door with smooth self-closing, adjustable speed and convenient hold-open positioning.

A Smarter Way to Control Your Door

This coordinated hinge set combines a hydraulic self-closing hinge with a matching load-bearing hinge, helping your door close more smoothly while maintaining stable support.

Quiet Closing Without the Sudden Impact

The built-in hydraulic mechanism helps reduce sudden door slamming, harsh impact and unnecessary closing noise.

Multiple Functions Built Into the Hinge

Smooth Self-Closing

The door returns automatically with controlled hydraulic movement.

Adjustable Control

Closing force and closing speed can be adjusted separately.

Hold-Open Positioning

Open the door past approximately 90° to keep it positioned when needed.

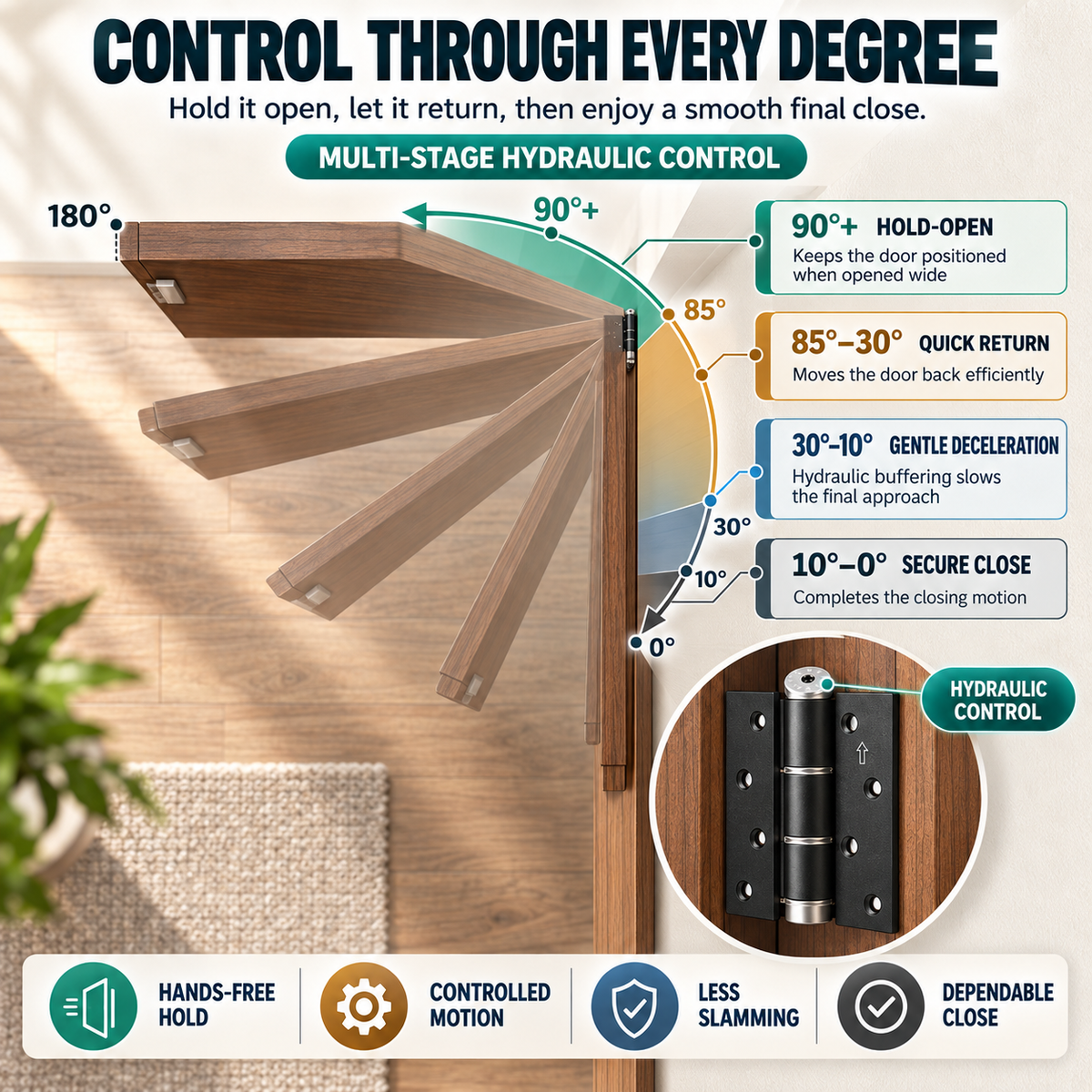

Controlled Closing Through Every Angle

The segmented closing action changes speed as the door approaches the frame, creating a smoother and more controlled movement.

Over 90°: Hold-open positioning area

Approximately 85°–30°: Faster buffer zone

Approximately 30°–10°: Slow deceleration zone

Final closing angle: Controlled return to the frame

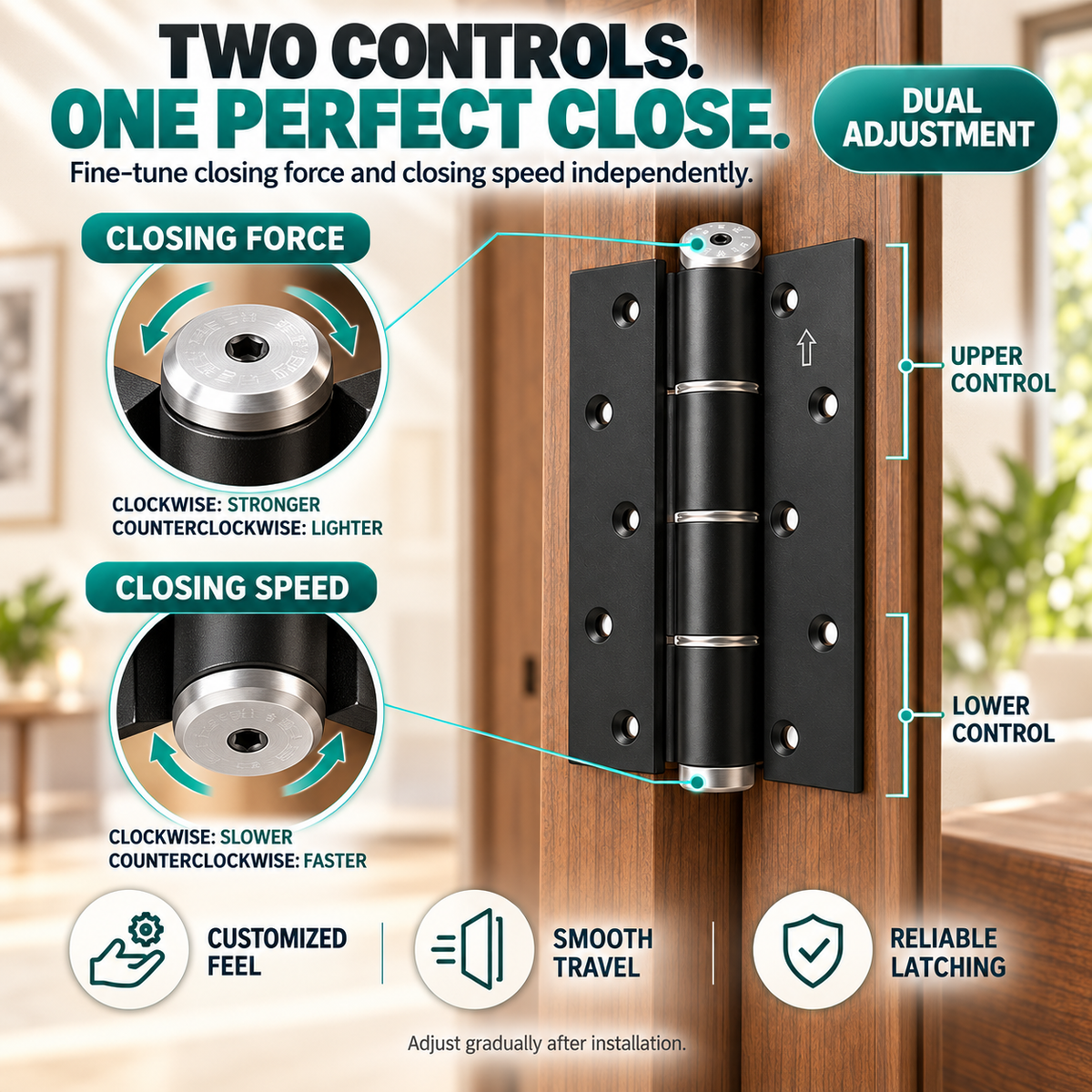

Fine-Tune the Closing Speed and Force

Independent adjustment points let you adapt the hinge movement to your door and preferred closing experience.

Upper Adjustment

Controls closing force. Turn clockwise to increase force and counterclockwise to reduce it.

Lower Adjustment

Controls closing speed. Turn clockwise for slower movement and counterclockwise for faster movement.

Make small adjustments gradually and test the door after each change.

Built for Stable Everyday Performance

The aluminum-alloy body, hydraulic transmission structure and internal bearing system create a strong, compact door-control solution.

Aluminum-Alloy Body

Hydraulic Transmission

Internal Bearing Support

The two-piece installation is rated by the supplier to support doors weighing up to approximately 50kg.

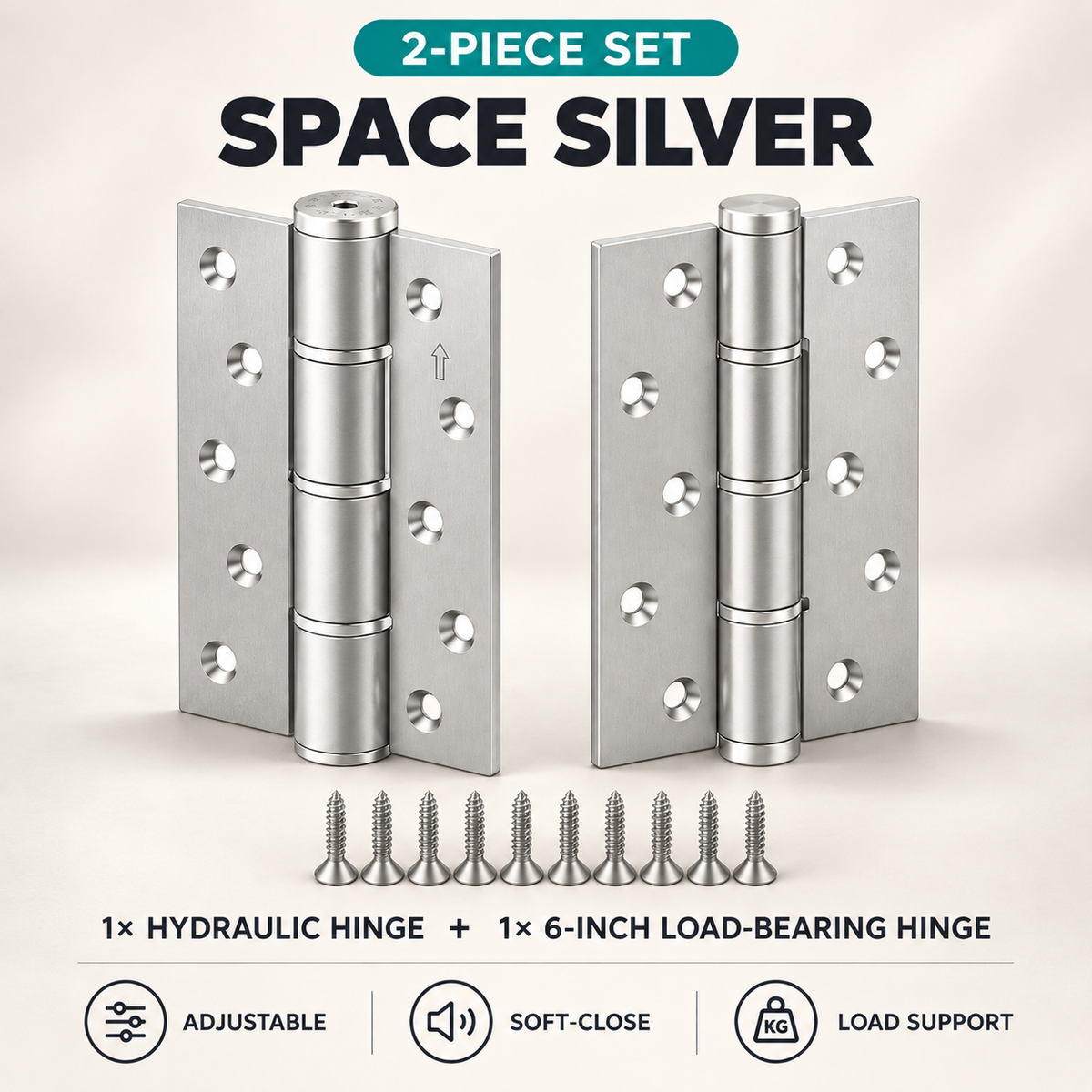

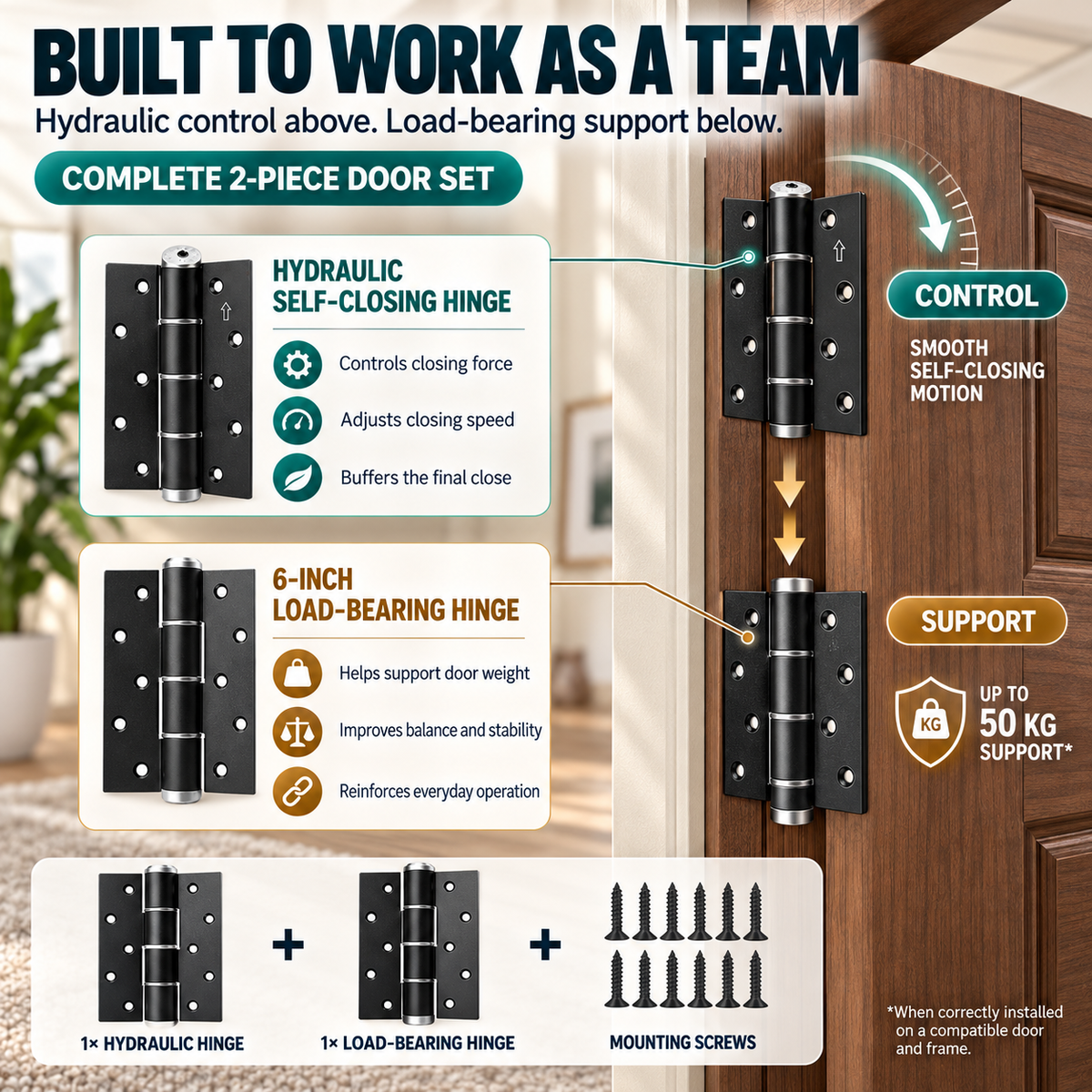

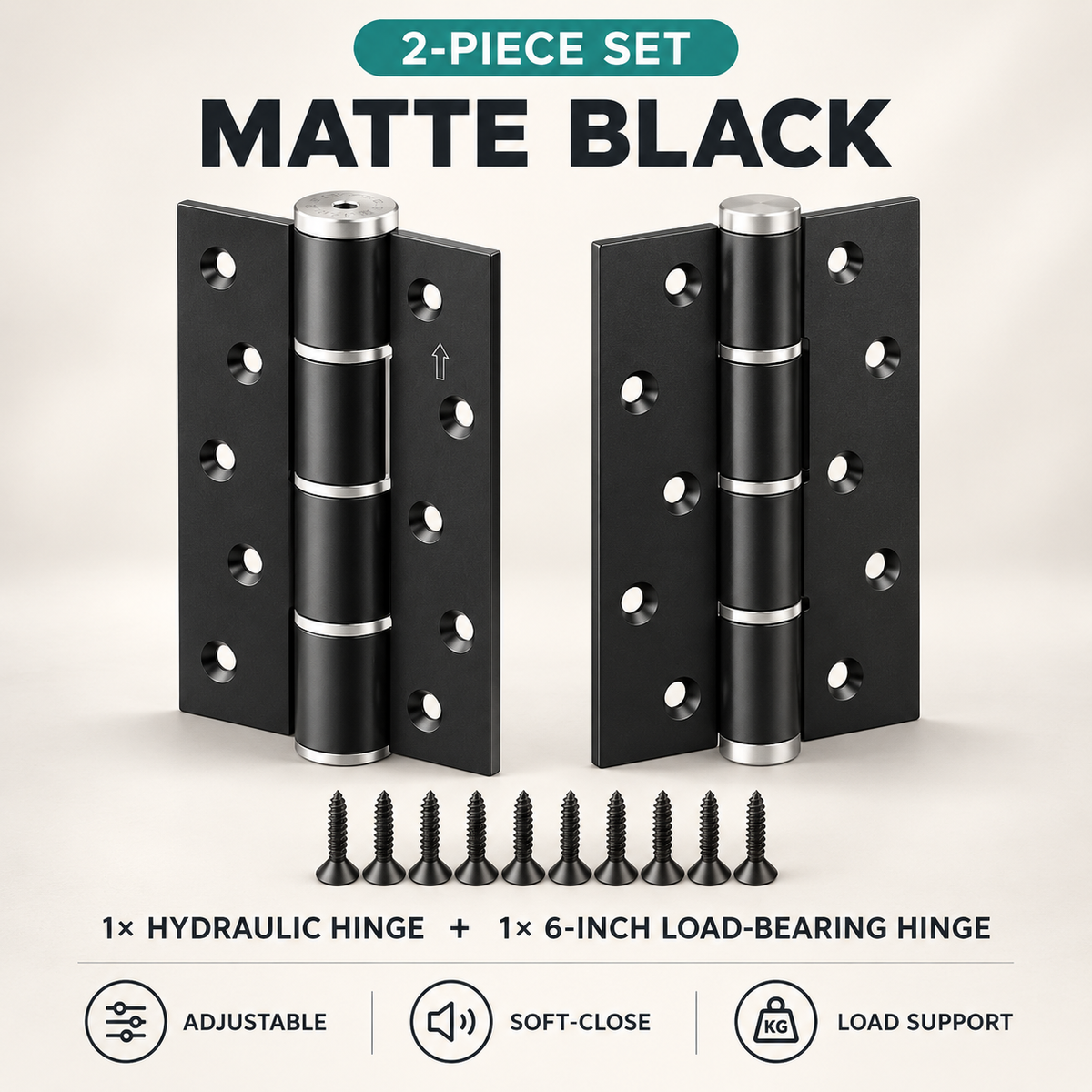

A Complete Two-Piece Door Solution

The hydraulic hinge controls the door movement while the matching load-bearing hinge helps provide balanced and stable support.

✔ 1 × Hydraulic self-closing hinge

✔ 1 × 6-inch load-bearing hinge

✔ Mounting screws included

✔ Available in Matte Black or Space Silver

6-Inch Load-Bearing Hinge Details

Total Height

174.5mm / 6.87in

Body Height

158.2mm / 6.23in

Open Width

97mm / 3.82in

Leaf Thickness

3.2mm / 0.13in

Available Colors

Matte Black / Space Silver

Recommended Application

Compatible Wooden Doors

Installation Reminder

Install the hydraulic hinge with the direction arrow pointing upward. Confirm door dimensions, weight, opening direction and mounting compatibility before installation.
